1. The lamp adopts double cavity structure, which is waterproof and can be spliced continuously.
2. The installation of air pressure balance device for lamps can balance the internal and external air pressure of lamps, solve the problem of internal and external pressure difference, eliminate the condensation phenomenon of lamps after working in outdoor environment, and ensure the service life of lamps.
3. The lamp uses high-strength ultra white tempered glass, with a light transmittance of more than 93%, and can successfully pass the impact resistance ik07 test.
4. The reasonable electronic circuit design of International LED chips combined with excellent heat dissipation structure ensure the service life of lamps,

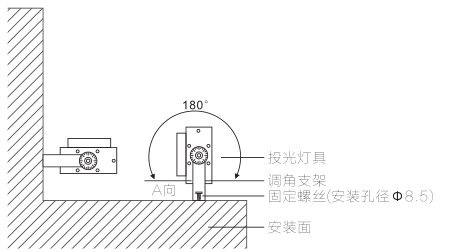

5. The lamp adopts the traditional U-shaped support structure design, which ensures the flexible adjustment of the lamp, the support is more firm, corrosion-resistant and high load-bearing. The support is equipped with anti loose clamping teeth, which has the function of gear locking, the adjustment angle can reach 10 °, flexible and light, multi angle coverage, and has strong application ability and stability,
6. apart from the novelty of the design, the luminaire is designed with thermoelectric separation. The bottom of the aluminum substrate is linked with the outer shell to ensure a good contact between the lamp board and the shell. The shell adopts aviation aluminum alloy, and the thermal conductivity reaches 230W/m*K, so as to reduce the decay of light and prolong the service life of the lamp.
7. Akzo Nobel polyester powder spraying process is adopted on the surface of the lamp to ensure the weather resistance of the lamp for long-term outdoor use. The flexible production process can customize the appearance color according to the engineering situation.
8. The lens customized by international lens manufacturers provides technical and hardware support for the optimization of the secondary optical lens of the lamp, ensuring that the lamp has excellent optical efficiency performance!
9. The lamps have passed the 2000 hour aging test of high temperature and high humidity (temperature 85 ℃ and humidity 85) to ensure the reliable performance of the lamps for long-term use in outdoor environment
功 率: Power: | 54W/72W/108W/144W | |
输入电压 lnput Voltage | AC220V/DC24V | |
外观颜色 Appearance | 与建筑同色 | |
主体材质 Main Material | YL113低铜高耐蚀压铸铝合金+超白钢化玻璃 | |

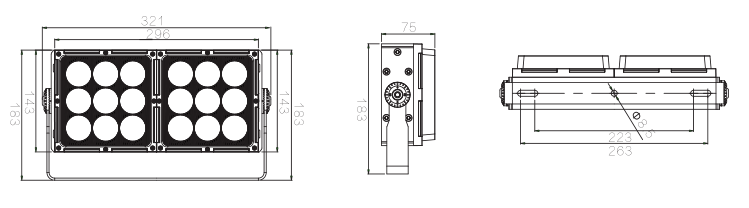

产品尺寸 product size | 296*143*70MM | |
防护等级 IP Code | IP67 |
芯片规格 The LED chip specification | CREE/OSRAM | |
色温 Color Temperature | 单色可选/RGBW | |
光通量 Luminous flux | (54W-3°)2970LM | |
使用寿命 life / duration | >50000小时 | |
光束角 Beam Angle | 3-120° |
工作环境 Operating Environment | —45°C 到65°C |
配置选型参数:
序号 | 型号 | 光源类型 | 光源色温 | 光源数量 | 系统功率 | 芯片/光源品牌 |
1 | HT-TGF143-2 | 大功率 LED | 单色可选 | 18 | 54W | CREE / OSRAM |
2 | HT-TGF143-2 | 大功率 LED | 单色可选 | 36 | 72W | CREE / OSRAM |
3 | HT-TGF143-2 | 大功率 LED | 单色可选 | 72 | 72W | CREE / OSRAM |
4 | HT-TGF143-2 | RGB 三合一 LED | RGB | 18 | 54W | CREE / OSRAM |
5 | HT-TGF143-2 | RGB 三合一 LED | RGB | 36 | 108W | CREE / OSRAM |
6 | HT-TGF143-2 | RGBW 四合一 LED | RGBW | 18 | 72W | CREE / OSRAM |
7 | HT-TGF143-2 | RGBW 四合一 LED | RGBW | 36 | 144W | CREE / OSRAM |
8 | 备注 | 如以上配置不在选定范围内, 可根据要求特别定制。 |
