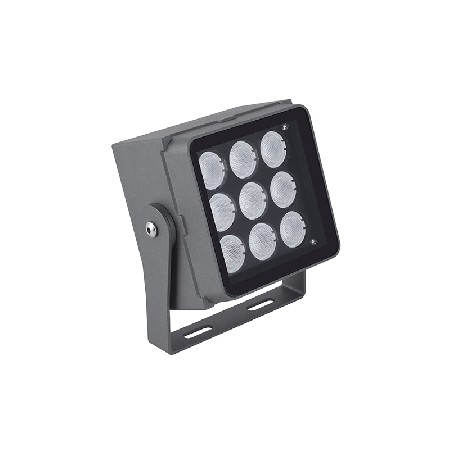

HT-TGF100

2020-05-14 914

1. The lamp adopts double cavity structure, which is waterproof and can be spliced continuously.

2. The installation of air pressure balance device for lamps can balance the internal and external air pressure of lamps, solve the problem of internal and external pressure difference, eliminate the condensation phenomenon of lamps after working in outdoor environment, and ensure the service life of lamps.

3. The lamp uses high-strength ultra white tempered glass, with a light transmittance of more than 93%, and can successfully pass the impact resistance ik07 test.

4. The reasonable electronic circuit design of International LED chips combined with excellent heat dissipation structure ensure the service life of lamps,

5. The lamp adopts the traditional U-shaped support structure design, which ensures the flexible adjustment of the lamp, the support is more firm, corrosion-resistant and high load-bearing. The support is equipped with anti loose clamping teeth, which has the function of gear locking, the adjustment angle can reach 10 °, flexible and light, multi angle coverage, and has strong application ability and stability,

6. apart from the novelty of the design, the luminaire is designed with thermoelectric separation. The bottom of the aluminum substrate is linked with the outer shell to ensure a good contact between the lamp board and the shell. The shell adopts aviation aluminum alloy, and the thermal conductivity reaches 230W/m*K, so as to reduce the decay of light and prolong the service life of the lamp.

7. Akzo Nobel polyester powder spraying process is adopted on the surface of the lamp to ensure the weather resistance of the lamp for long-term outdoor use. The flexible production process can customize the appearance color according to the engineering situation.

8. The lens customized by international lens manufacturers provides technical and hardware support for the optimization of the secondary optical lens of the lamp, ensuring that the lamp has excellent optical efficiency performance!

9. The lamps have passed the 2000 hour aging test of high temperature and high humidity (temperature 85 ℃ and humidity 85) to ensure the reliable performance of the lamps for long-term use in outdoor environment


基本参数  Basic Parameter

功   率: Power:9W/12W/15W
输入电压 lnput VoltageAC220V/DC24V
外观颜色 Appearance  与建筑同色
主体材质 Main Material YL113低铜高耐蚀压铸铝合金+超白钢化玻璃
产品尺寸 product size100*100*70MM
防护等级 IP Code IP67


光电参数  Electric Parameter

芯片规格 The LED chip specificationCREE/OSRAM
色温     Color Temperature 单色可选/RGBW
光通量   Luminous flux (12W-25°)1980LM
使用寿命 life / duration>50000小时
光束角   Beam Angle 3-120°


环境参数  Environmental parameters

工作环境 Operating Environment —45°C 到65°C


配光说明:


配置选型参数:

序号型号光源类型光源色温光源数量系统功率芯片/光源品牌
1HT-TGF100大功率 LED单色可选412WCREE / OSRAM
2HT-TGF100大功率 LED单色可选612WCREE / OSRAM
3HT-TGF100大功率 LED单色可选918WCREE / OSRAM
4HT-TGF100RGB 三合一 LEDRGB412WCREE / OSRAM
5HT-TGF100RGB 三合一 LEDRGB618WCREE / OSRAM
6HT-TGF100RGB 三合一 LEDRGB927WCREE / OSRAM
7HT-TGF100RGBW 四合一 LEDRGBW416WCREE / OSRAM
8HT-TGF100RGBW 四合一 LEDRGBW624WCREE / OSRAM
9HT-TGF100RGBW 四合一 LEDRGBW936WCREE / OSRAM
10
备注如以上配置不在选定范围内, 可根据要求特别定制。
