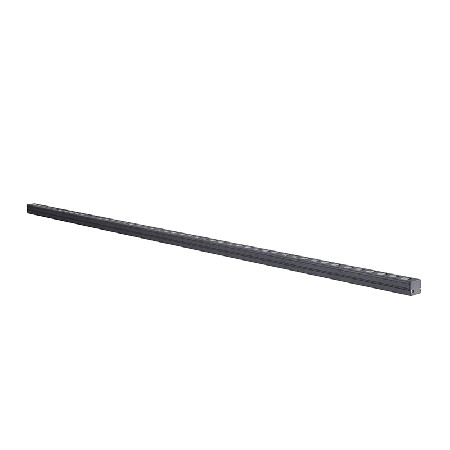

HT-XT2018

2020-05-14 704

1. The lamp body is filled with high-quality environmental protection PU glue, which will not affect the internal circuit of the lamp even if it is directly soaked in rain.

2. The lamp body adopts physical waterproof structure design. After the lamp is heated, it can automatically form hot gas convection to keep the lamp temperature below 60 °.

3. The overall streamline design of the lamp has undergone multiple process treatments, so as to achieve the combination of high-strength ultra white tempered glass and arc lamp body

4. The reasonable electronic circuit design of International LED chips combined with excellent heat dissipation structure ensure the service life of lamps,

5. Excellent support structure design ensures flexible adjustment of lamps

6. In addition to the novel appearance design, the bottom of the aluminum substrate and the shell are hard linked to ensure good contact between the lamp plate and the shell, which can quickly dissipate heat, so as to reduce light attenuation and delay service life.

7. The surface adopts high-temperature polyester powder spraying process to ensure the weather resistance of lamps for long-term outdoor use. The flexible production process can customize the appearance color according to the engineering situation.

8. The lens customized by international lens manufacturers provides technical and hardware support for the optimization of the secondary optical lens of the lamp, ensuring that the lamp has excellent optical efficiency performance!

9. High temperature and high humidity (temperature 85 ° C and humidity 85) aging test for more than 2000 hours to ensure the reliable performance of lamps in outdoor environment for long-term use.


基本参数  Basic Parameter

功   率: Power:12W/15W
输入电压 lnput VoltageDC24V
外观颜色 Appearance  与建筑同色
主体材质 Main Material 6063铝+超白钢化玻璃
产品尺寸 product size       1000*20*18MM(不含支架高度)
防护等级 IP Code IP65


光电参数  Electric Parameter

芯片规格 The LED chip specificationCREE/EPISTAR
色温     Color Temperature 单色可选
光通量   Luminous flux 1020ML(120°)
使用寿命 life / duration>50000小时
光束角   Beam Angle 120°


环境参数  Environmental parameters

工作环境 Operating Environment —45°C 到65°C


配光说明:



配置选型参数:

序号型号光源类型光源色温光源数量系统功率芯片/光源品牌
1HT-XT2018SMD 5050LED单色可选4812WCREE / OSRAM
2HT-XT2018SMD 5050LED单色可选6015WCREE / OSRAM
3
备注如以上配置不在选定范围内, 可根据要求特别定制。
