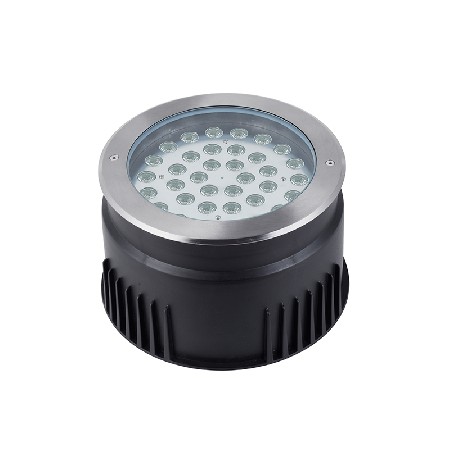

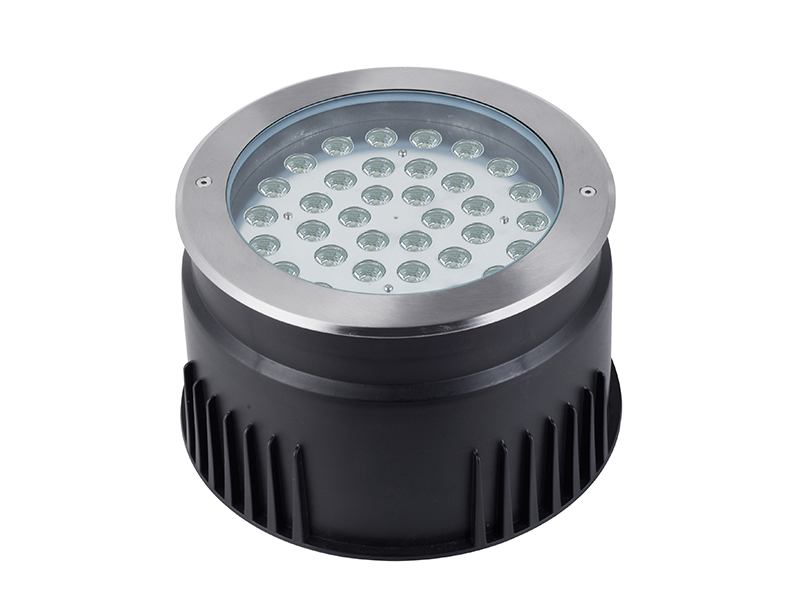

HT-MDY02
2020-05-14 1020
基本参数 Basic Parameter
| 功 率: Power: | 24W/36W/72W/108W/144W/192W | |
| 输入电压 lnput Voltage | AC220V/DC24V | |
| 外观颜色 Appearance | 不锈钢 | |
| 主体材质 Main Material | YL113低铜高耐蚀压铸铝合金+304#不锈钢+超白钢化玻璃 | |
| 产品尺寸 product size | φ180MM | |
| 防护等级 IP Code | IP67 | |
光电参数 Electric Parameter
| 芯片规格 The LED chip specification | CREE/OSRAM | |
| 色温 Color Temperature | 单色可选/RGBW | |
| 光通量 Luminous flux | (24W-25°）3960LM | |
| 使用寿命 life / duration | ＞50000小时 | |
| 光束角 Beam Angle | 5-120° | |
环境参数 Environmental parameters
| 工作环境 Operating Environment | —45°C 到65°C | |
配光说明：
