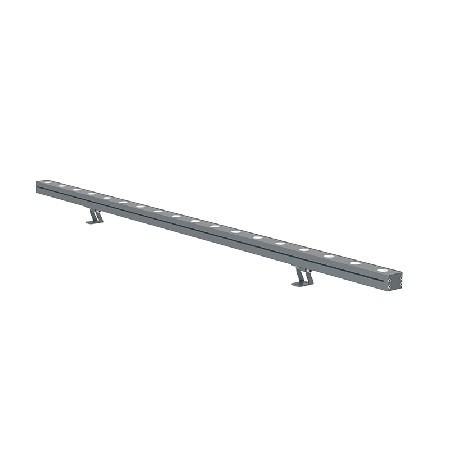

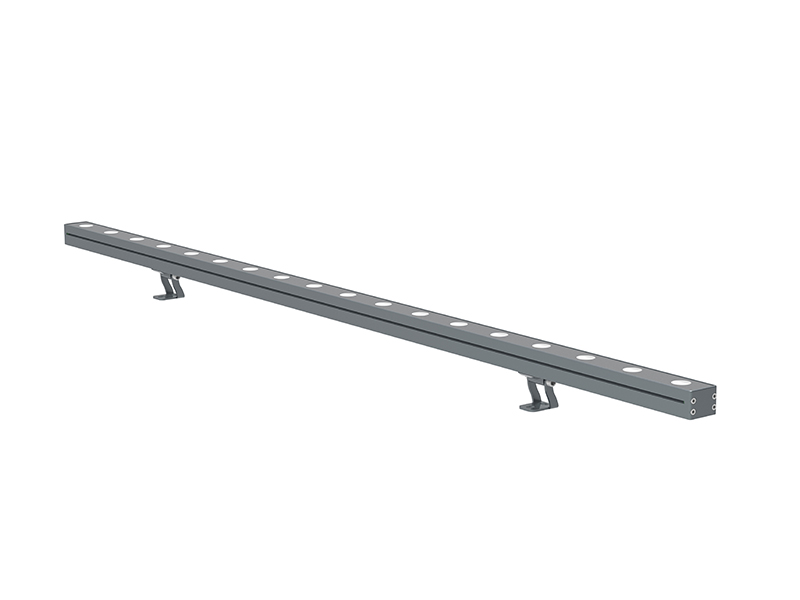

HT-XQ3124

2020-05-14 847

1. The lamp adopts structural waterproof design, and high-quality environmental protection PU glue is poured inside the lamp body to achieve double waterproof. Even if it is directly soaked in rain, it will not have any impact on the internal circuit of the lamp.

2. The air pressure balance device installed on the lamp body can balance the internal and external air pressure of the lamp, solve the problem of internal and external pressure difference, and prevent condensation after the lamp works in the outdoor environment; Ensure the service life of lamps.

3. The overall streamline design of the lamp has undergone multiple process treatments, so as to achieve the combination of high-strength ultra white tempered glass and arc lamp body

4. The reasonable electronic circuit design of International LED chips combined with excellent heat dissipation structure ensure the service life of lamps,

5. The excellent support structure design ensures the flexible adjustment of the lamp, and the serrated m support locking device makes the support more secure,

6. In addition to the novel appearance design, the bottom of the aluminum substrate and the shell are hard linked to ensure good contact between the lamp plate and the shell, which can quickly dissipate heat, so as to reduce light attenuation and delay service life.

7. The surface adopts high-temperature polyester powder spraying process to ensure the weather resistance of lamps for long-term outdoor use. The flexible production process can customize the appearance color according to the engineering situation.

8. The lens customized by international lens manufacturers provides technical and hardware support for the optimization of the secondary optical lens of the lamp, ensuring that the lamp has excellent optical efficiency performance!

9. High temperature and high humidity (temperature 85 ° C and humidity 85) aging test for more than 2000 hours to ensure the reliable performance of lamps in outdoor environment for long-term use.

基本参数  Basic Parameter

功   率: Power:12W/18W/24W
输入电压 lnput VoltageDC24V
外观颜色 Appearance  与建筑同色
主体材质 Main Material 6063铝+超白钢化玻璃
产品尺寸 product size       1000*31*24MM(不含支架高度)
防护等级 IP Code IP67


光电参数  Electric Parameter

芯片规格 The LED chip specificationCREE/OSRAM
色温     Color Temperature 单色可选/RGBW
光通量   Luminous flux (12W-10*45°)5280LM
使用寿命 life / duration>50000小时
光束角   Beam Angle 5-120°/双角度


环境参数  Environmental parameters

工作环境 Operating Environment —45°C 到65°C


配光说明:
